Digital Textile Fabric DTF Printing machine

  • Product Details
  • Company Profile

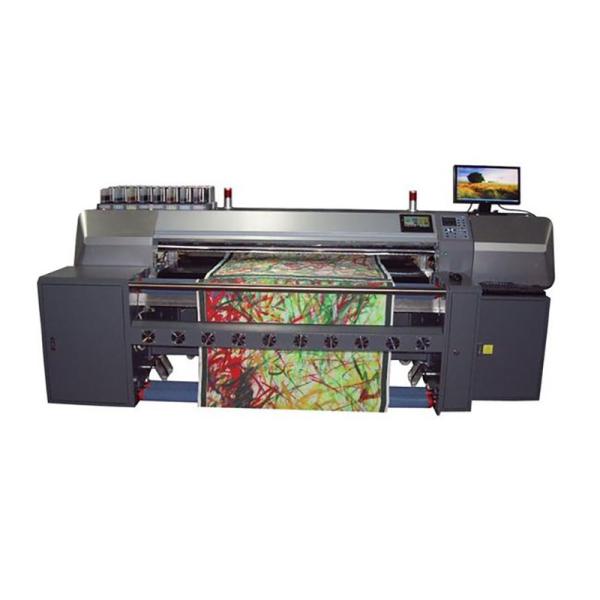

Digital Textile Fabric DTF Printing machine

For the traditional screen printing, complicate pre-treating and after-treating are required. While with the belt fabric printer, which can work with disperse ink, pigment ink, acid ink and reactive ink, then print directly onto fabric easily. Especially for pigment ink, need only three steps: Printing, and heat fixation only. This digital printing make customize or DIY printing to be possible. And the belt type media feeding system, enable the printing of textile with different elasticity. Achieve maximum business potential.


McLantis Group

McLantis Group McLantis Group


McLantis Group McLantis Group


ModelDIGIMAC JETTEX
Print HeadMicro piezo printhead DX5 / i3200
Max Print Width2200mm, 2600mm, 3200mm

Print Speed

(sqm /h)

Print HeadDX5 * 2pcsi3200 * 2pcsi3200 * 3pcs
Production mode4 pass 30.64 pass 50.53 pass 97
Standard mode6 pass 246 pass 31.64 pass 75
Quality mode8 pass 15.48 pass 24.86 pass 50.5
InkTypeDye Sublimation ink
ColorCyan, Magenta, Yellow, Black
ApplicationT-shirts, cloths ,towers, home textile, pants, shoes, hats, scarves, curtains, umbrellas, cups, skateboards ...
Ink SupplyAuto Ink supply system
Maintenance Of The PrintheadOne button cleaning printhead by solvent
Rip SoftwareMainTop; PhotoPRINT
Data InterfaceUSB 2.0 / USB 3.0
Assistant OptionFeeding & Take upAuto Feeding And Take Up System
Heating SystemStage heating system include back, front heating
Carriage Height1 - 5 mm Distance to the printing platform , adjustable
Other FunctionsLight for carriage position
Printer InfoOperating voltageAC 220V 50Hz/60Hz ( 110V Optional )
PowerPrint system:0.5kw ; Front 0.5kw ; Rear 0.5kw ; Back 1kw
Working EnvironmentTemperature: 22 - 28 Humidity:40% - 70%
Printer Dimension3200mm(L)x900mm(W) x1350mm(H) 200kg
Shipping Dimension3360mm(L) x760mm(w) ×1020mm(H) 240kg
